Brand new.
Perfect for small models and really tight places!.

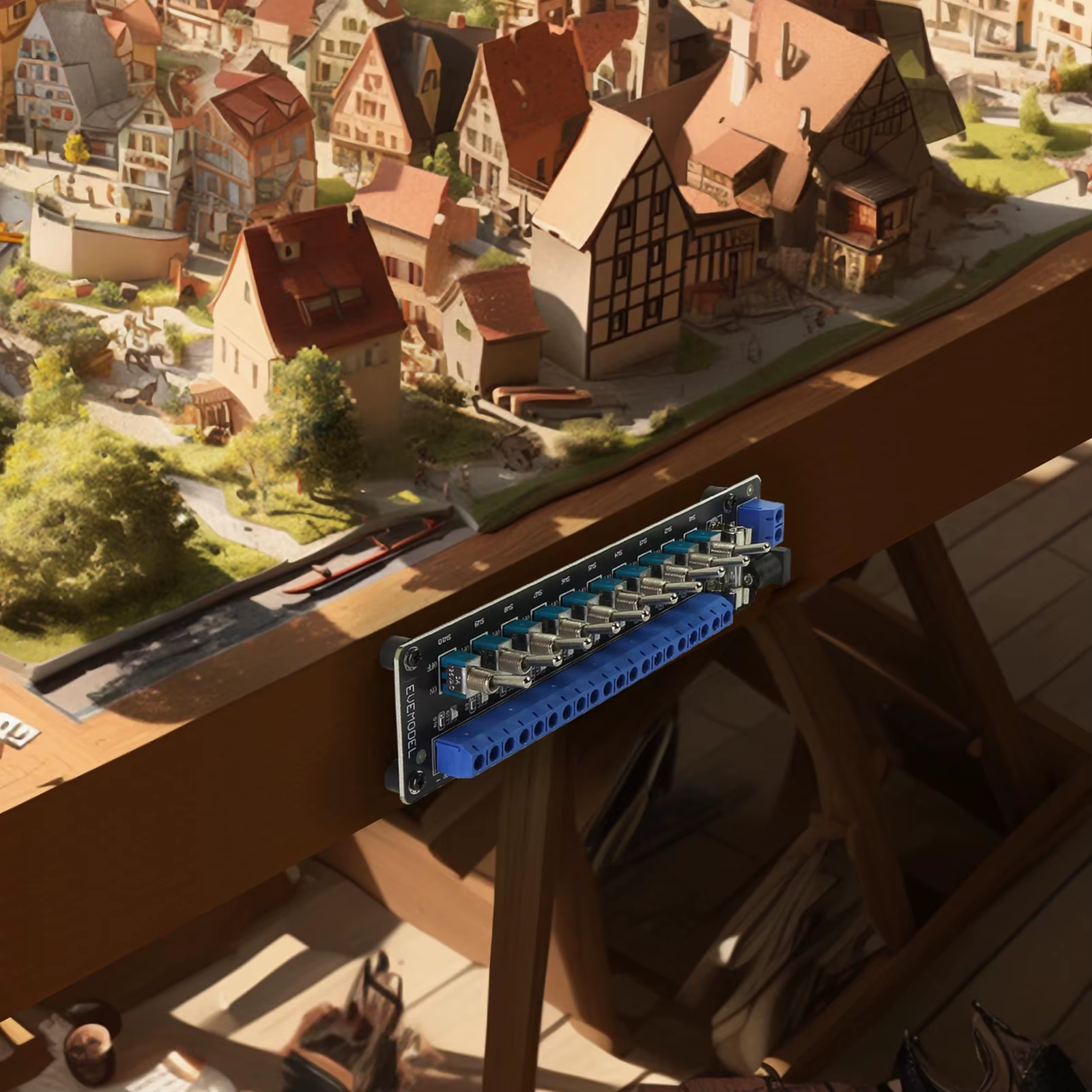

This distribution board is the ideal solution for the model train to supply all lighting.

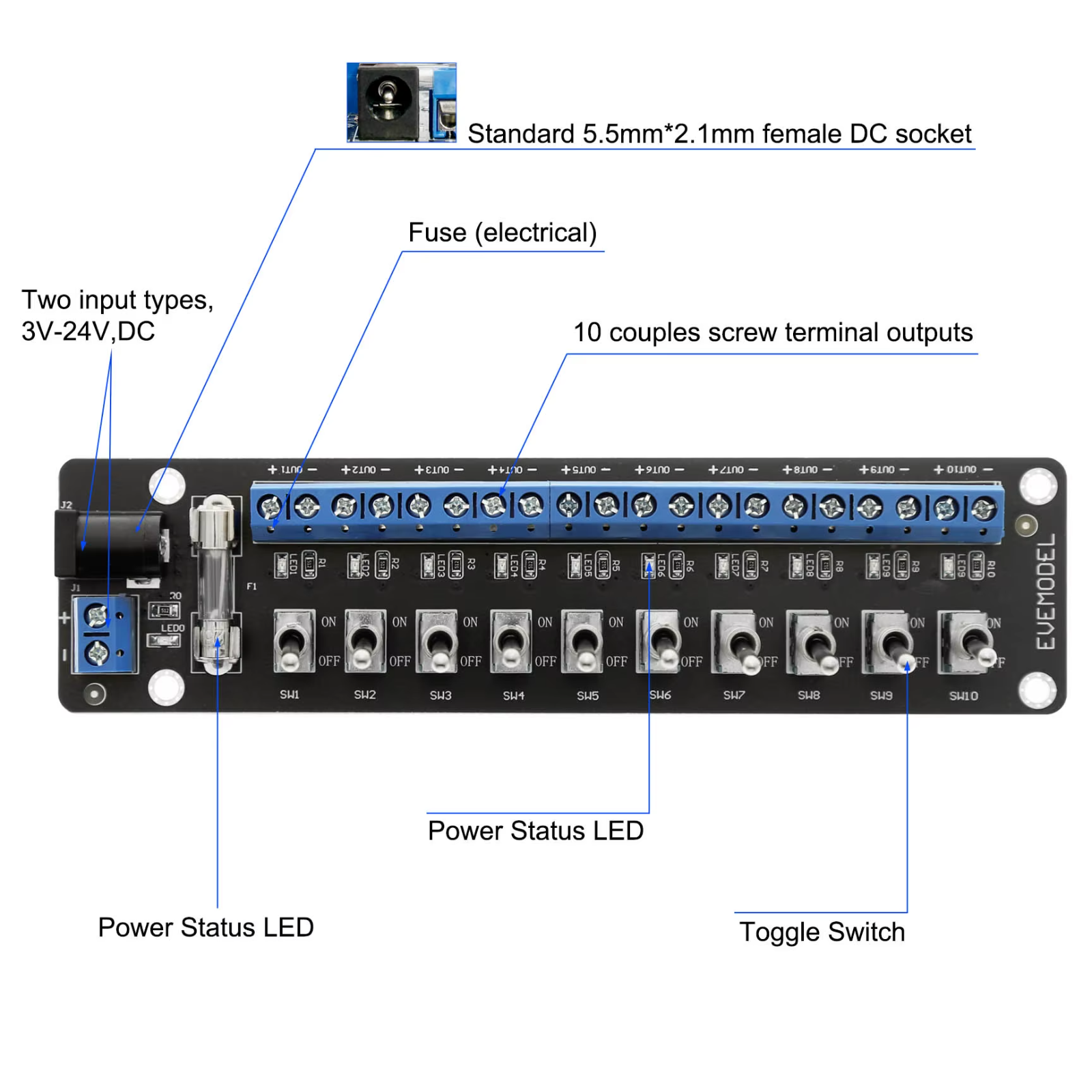

10 Channels lighting connector. Includes 8A fuse and LED power indicator light.

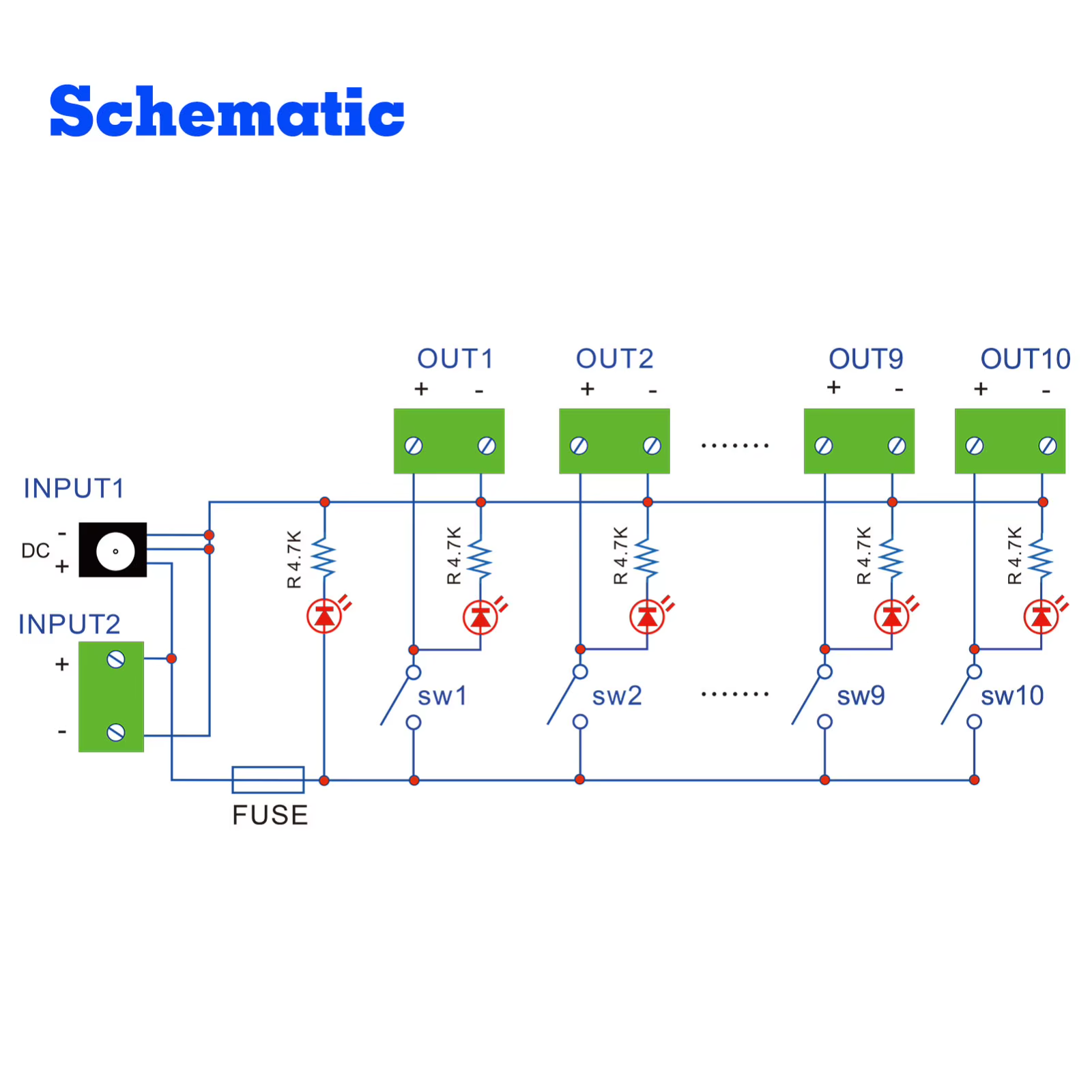

There are 10 Pairs of (+/-) output terminals, each controlled by its own on/off switch allowing lights to be on and off independently.
This power distribution module has a 2.1mm connector socket which is directly compatible with Digital Power Supplies (PS100, PS200, PS300 & PS500), NOT INCLUDED.

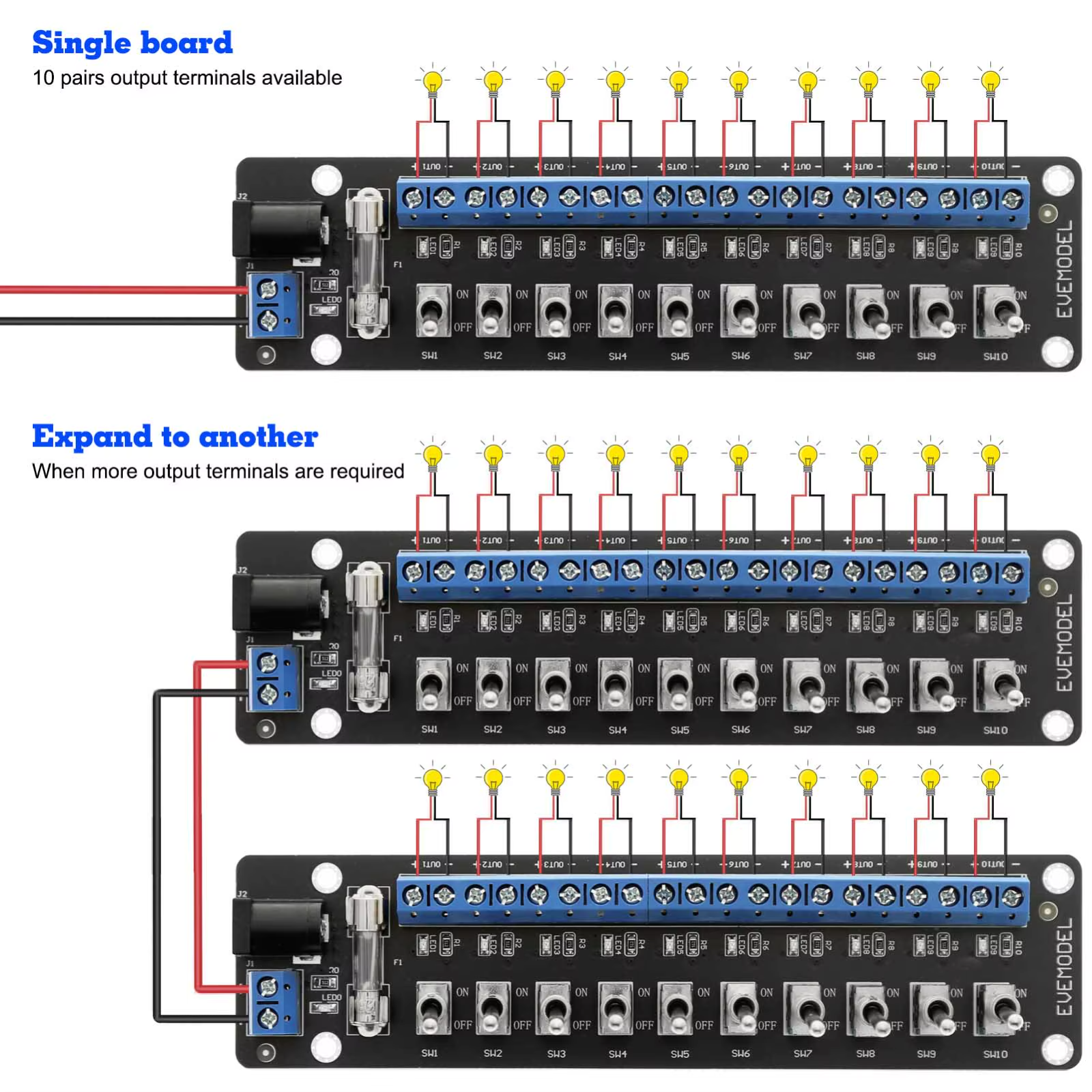

Alternatively the two screw terminal input next to the 2.1mm socket can be used to connect other types of power supply.These screw terminals can also be used to link additional socket strips in large systems where more output channels are required.

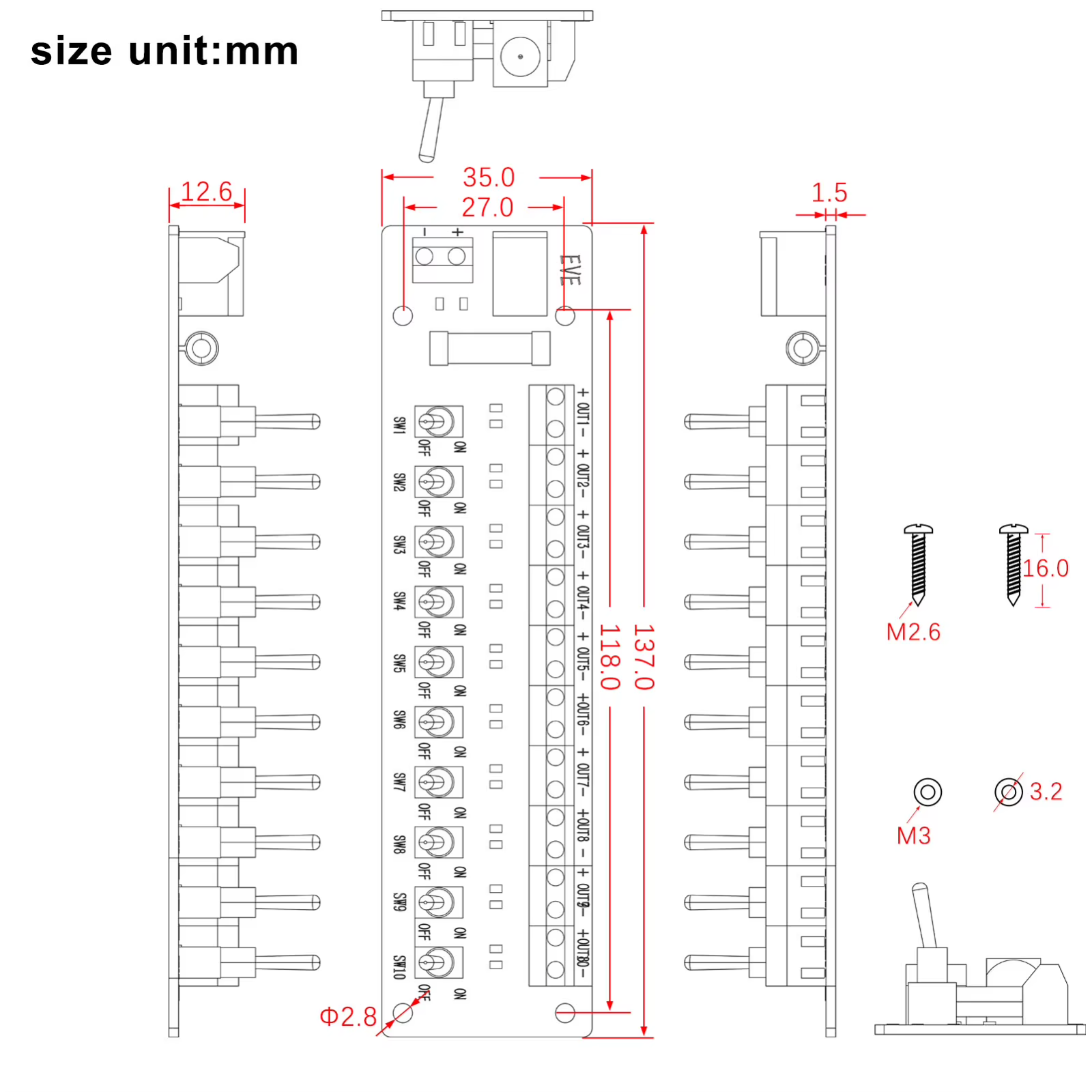

Dimensions:as the picture shows.
Voltage: 3V-24V,DC voltage.
Maximum power input: 24V DC 8.0A.
Maximum power output: 8.0A total between all channels. Max. 1.0A per channel.
Fuse specification: 8Amp (20mm x 5mm).

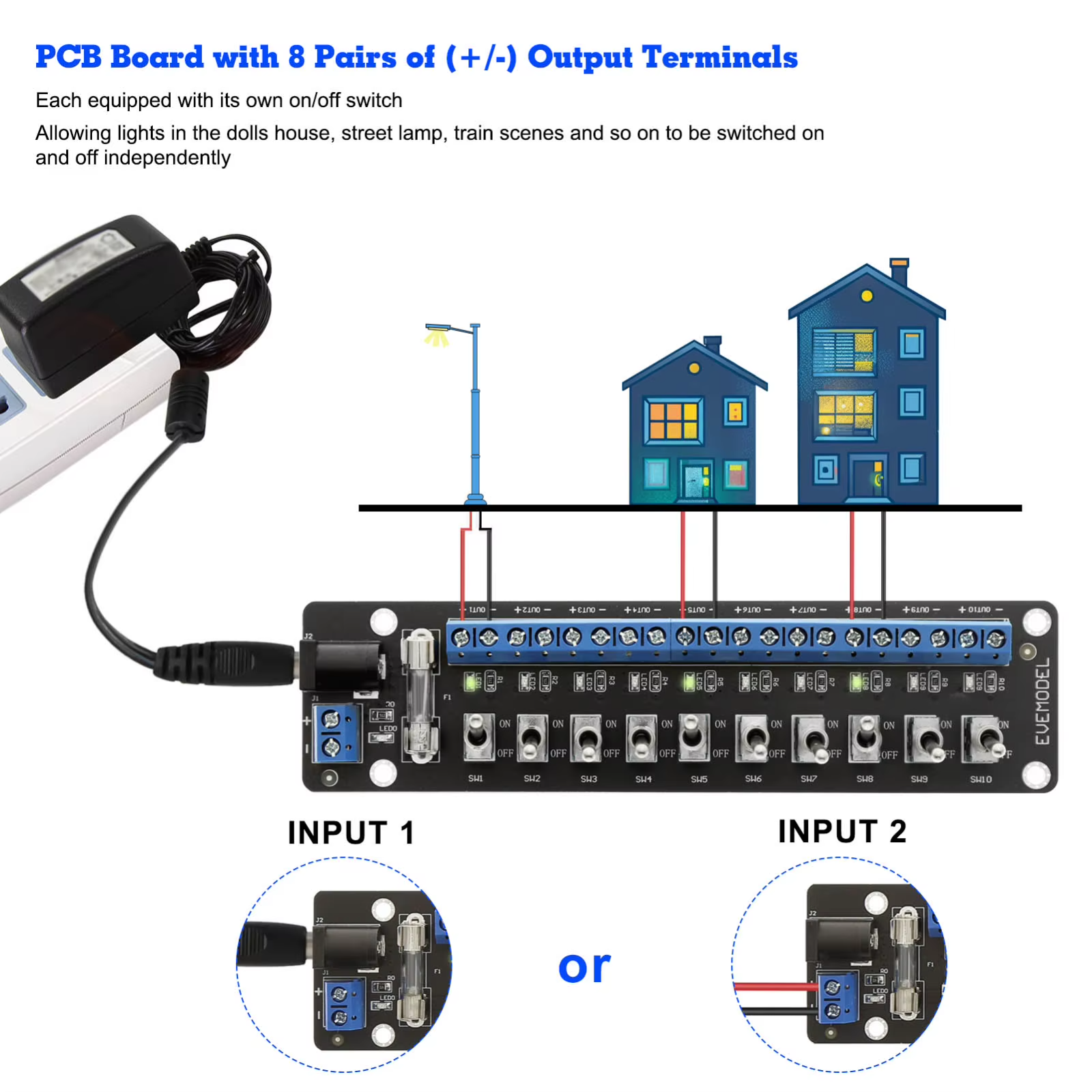

Power input 1: standard 5.5mm*2.1mm female DC socket.(You need to prepare the male input power supply by yourself.It is not included)
Power input 2:screw terminals.
